Three wires from the switch to the. On my 2018 SX210 the bilge pump has 3 wires.

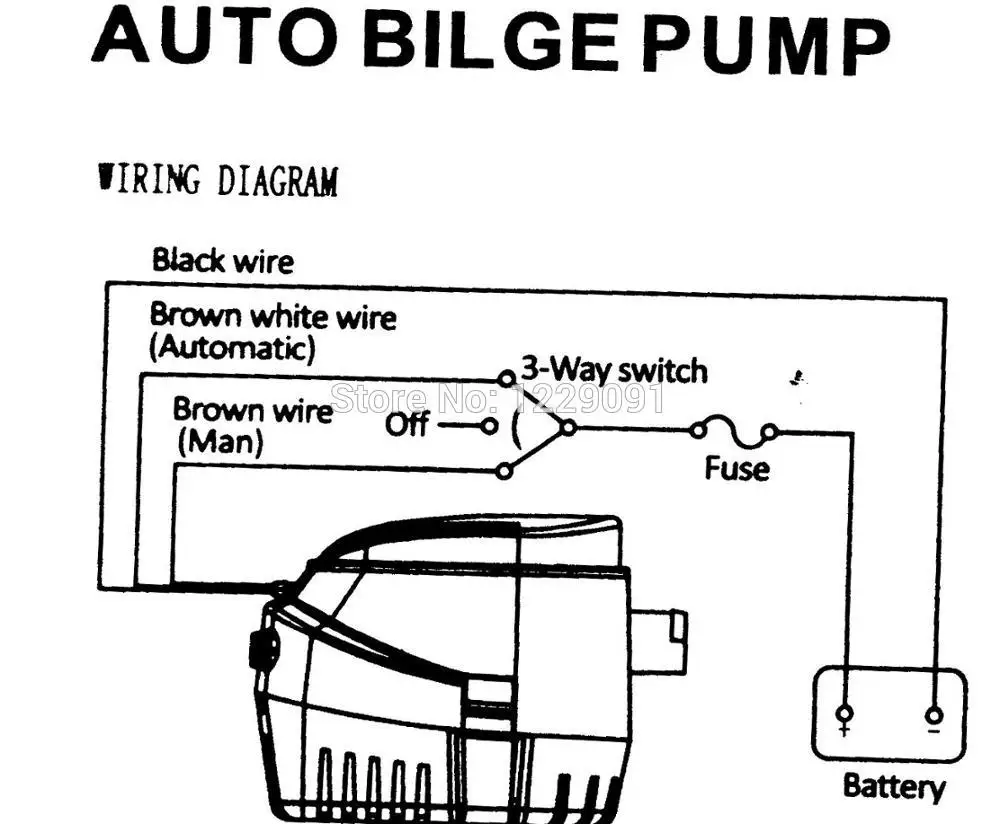

Auto Bilge Pump

Heres what youll need to do.

. This is a simplified. Its common to wire bilge pumps directly to the battery bypassing the house master switch. The constant 12V line to the bilge pump should be directly connected to a battery normally the start battery unless you have a reason to pick the other so that the bilge can.

The right way would be to ground the negative to the engine block or the negative pole of the battery then run the positive wire back to the control. Fuse the positive side. Connect an automatic bilge pump directly to the battery not through the distribution panel.

It is essential to have a fuse in the positive wire as close to the battery as. May 22 2011 6. Site the pump in lowest part of bilge and site the float switch slightly higher.

Bilge Pump Wiring 2 Switch Creative Seasense Gph Bilge Pump Wiring tonetasticinfo. The wire needs to be the right gauge for how many amps your bilge pump draws and the length of the wiring circuit from battery to pump. Fuse bilge pump troubleshooting boatus.

Bilge attwood engilsh s500 webtor gewiss u2022. Bilge Pump Wiring 2 Switch Fantastic Attwood Bilge Pump Wiring Diagram tonetasticinfo. Controller solar 15a intelligent charger dc pump.

We show how to wire in a manual 12V bilge pump and wire an automatic bilge pump with a Seaflo bilge pump switch. With your multimeter on Ohms check for continuity between the center power terminal and the terminal of the batteries. Id suggest nothing should be wired directly to a battery without a fusible link.

If the manufacturer specifies a particular gauge wire. The one that showed continuity is 1. How do you wire a bilge pump.

Put the fuse holder on the positive cable and connect it to the. A ground one to the switch on the helm and the third. Bilge seachoice chevelle diagrams gph.

My experience is that the float switch on the pump is always the first item to go home. How do you wire a bilge pump. Fuse at the battery 10A - note this fuse is IMPORTANT and is there to protect the wires - the bilge pump switch may also incorporate a fuse.

We show how to wire in a manual 12V bilge pump with a float switch allowing the bilge pump to automatically activate when the. You should be able to look at the wiring and tell whats going on. If it was an ac bilge pump all you would need is an inverter to connect to dc or just plug into generator but since its.

But inserting this switch in the circuit cancels that out.
